2'' Gr2 Polished Titanium Pipe

Name: China 2'' Gr2 Polished Titanium Pipe Manufacturers Suppliers Factory - Customized Service - Reliab Metal
Brand: RELIAB
SKU: 281545751

Item name:2'' Gr2 polished titanium pipe
Material: CP titanium grade 2
Standard:ASTM B337,ASTM B338,ASTM B861,ASTM B862
Finish:Polished,Grinded,Rolled
MOQ: 1kg

Send Inquiry

Description

What is Gr2 polished titanium pipe?

Titanium pipes are industrial pipes made of titanium or titanium alloys, possessing characteristics such as lightweight, high strength, and corrosion resistance. Adhering to standards such as ASTM B337/338, these products are widely used in chemical processing, aerospace, marine engineering, and medical industries.

Common grades include BT1 series, and Gr1, Gr2, which are classified into α-type, β-type, and α+β-type. The properties can be adjusted by adding elements such as aluminum and molybdenum; aluminum, in particular, enhances the material's strength and heat resistance.

The manufacturing process for titanium pipes involves techniques such as cold rolling, welding, and extrusion. The outer diameter ranges from 4 to 280 mm, with wall thickness tolerance controlled within ±12.5%. The chemical composition must meet impurity content standards to ensure adequate ductility. Its density is approximately 4.51 g/cm³, and its tensile strength can reach over 895 MPa. It can withstand operating temperatures ranging from -253°C to 550°C. Typical applications include heat exchangers (such as condensers and evaporators), standard piping for the nuclear power industry, aircraft engine compressor components, and fuel tanks for spacecraft.

Introduction of polished titanium pipe

Titanium tube polishing is a process that uses mechanical or chemical methods to improve the surface finish, appearance, and performance of titanium tubes. Its primary objective is to remove defects such as oxide layers, scratches, and burrs that occur during the manufacturing process, while enhancing the surface's corrosion resistance and aesthetic appeal.

Technical Principles and Classification

Titanium tube polishing can be broadly categorized into two types: mechanical polishing and chemical/electrochemical polishing:

A. Mechanical Polishing: This method uses tools such as sandpaper, grinding wheels, or polishing machines to remove surface imperfections through physical friction. It is suitable for applications requiring high surface smoothness, but the friction can generate heat, potentially causing localized deformation. Process parameters (e.g., speed, typically 800-1200 rpm, and feed rate, 0.05-0.1 mm/pass) must be strictly controlled.

B. Chemical/Electrochemical Polishing: This method utilizes acidic or alkaline solutions to react chemically with the titanium surface, dissolving microscopic protrusions to achieve a smooth surface. For example, a nitric acid-hydrofluoric acid mixture can effectively remove the oxide layer, but the solution concentration (15-20% nitric acid, 5-8% hydrofluoric acid) and temperature (20-40°C) must be strictly controlled to prevent excessive corrosion.

Application Scenarios and Industry Standards

Titanium tube polishing is widely used in aerospace, medical devices, and chemical equipment industries. For example, in the aerospace industry, the surface roughness of titanium tubes (Ra) must be ≤0.4 μm to ensure efficient fluid flow; while in the medical device industry, it needs to meet requirements such as non-magnetic properties and low bacterial adhesion. Regarding industry standards, internationally, ASTM B600 (Standard Specification for Surface Finish of Titanium and Titanium Alloy Products) is typically used as a reference.

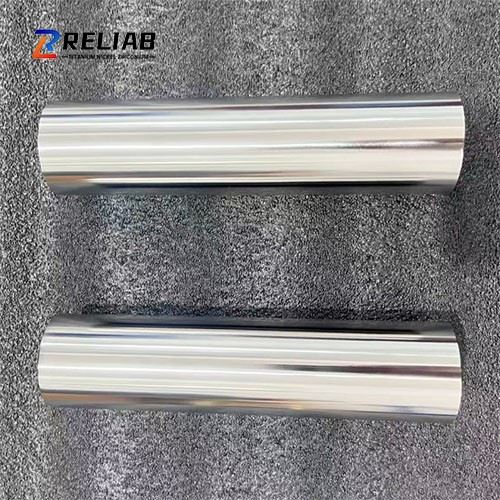

Products pictures of 2'' Gr2 polished titanium pipe

2'' Gr2 polished titanium pipe.

High quality titanium tubes manufacturer

Chemical Composition of 2'' Gr2 polished titanium pipe

Elements	Composition(max,%)‌	Remarks‌
Ti	≥99.5	Balance; Basic/main element
Fe	≤0.30	Other element
O	≤0.25	This element Affect ductility
H	≤0.015	Other element
N	≤0.05	Other element
C	≤0.10	Other element

Mechanical Property of 2'' Gr2 polished titanium pipe

	Tensile Strength		Yield Strength		Elongation,min %	Reduction of Area,min %
	Ksi	Mpa	Ksi	Mpa	Elongation,min %	Reduction of Area,min %
Grade 2	50	345	40~65	275~450	20	30

Our Advantage

1. We supply the third-party Testing Report/Certificate with the goods for each order.

2. Fast delivery. (We have stocks for main sizes titanium tubes and delivery time is 1-2days; For non-standard size the delivery time is 10-15days max)

3. Provide personalized packaging and laser marking such as Logo and Size.

4. 24-Hours online service and E-mail response.

5. Shipping methods: Express, Air cargo, Ocean.

Company introduction

Baoji Reliab Metal Material Co.,Ltd is a professional manufacturer and supplier of Titanium mill products and Nickel,Zirconium products. With high quality controlling system, our products meeting the international standard as ASTM, ASME, AMS, JIS, DIN, TOCT, our main products including bars/rods, plates/sheets, tubes, wires, forgings rings, anodes, fasteners and CNC machined parts.

For over 11 years,Baoji Reliab Metal Material has grown as one of the steady suppliers for aerospace-grade titanium and medical-grade titanium products field in China.

*TO BE YOUR RELIABLE AND TRUSTABLE PARTNER AS ALWAYS!!*
