Products introduction
Grade 2 Titanium Round Ground Bar 50mm diameter(ASTM Grade 2, UNS R50400) is the most widely used and highest-volume grade among industrial pure titanium grades, and is hailed as the "all-around workhorse" of the pure titanium family. Thanks to its excellent corrosion resistance, good balance of strength and ductility, outstanding weldability, and lightweight yet high-strength characteristics, it has become an indispensable base material in fields such as chemical engineering, marine engineering, medical applications, and aerospace.
The 50 mm diameter (Φ50 mm) falls within the medium-to-large range for round bars and is suitable for applications with high requirements for strength and dimensional stability, such as structural component machining, flange blanks, valve body parts, and heat exchanger tube sheets. The product is available in accordance with the ASTM B348/B348M standard and supports cut-to-length and custom machining.
Chemical Composition
The chemical composition of GR2 strictly controls the content of interstitial elements to ensure an optimal balance between strength and ductility.：
| Elements | Content Requirements (wt%, maximum) |
|---|---|
| Ti(Titanium) | Residual Content (≥99.2%) |
| Fe(Iron) | ≤0.30% |
| O(Oxygen) | ≤0.25% |
| C(Carbon) | ≤0.08% |
| N(Nitrogen) | ≤0.03% |
| H(Hydrogen) | ≤0.015% |
| Other (Single) | ≤0.10% |
| Other (Total) | ≤0.40% |
PS: Among these, oxygen content is the key variable determining the mechanical properties of GR2-oxygen is a strong stabilizer of the α phase and a solid-solution strengthening element. GR2 raises the upper limit for oxygen to 0.25%, resulting in a strength increase of approximately 80–100 MPa compared to GR1 (≤0.18%), while retaining sufficient ductility. Hydrogen content is strictly limited to less than 0.015% to prevent hydrogen embrittlement fracture.
main Specifications
- Diameter: 50mm (other sizes on requests)
- Tolerance: h7/h8/h9/h10
- Length: 3000–6000mm, or cut to length
- Condition: Annealed (M) / Hot Worked (R) / Cold Worked (Y)
- Surface: Pickled / Polished (bright) / Ground / Turned
- Standards: ASTM B348, ASME SB348, ISO 5832-2
Product Features
- Lightweight: With a density of only 4.51 g/cm³, a titanium rod measuring 50 mm in diameter and 1 m in length weighs approximately 8.86 kg, making it about 40% lighter than a steel rod of the same specifications.
- Excellent Corrosion Resistance: Exhibits exceptional resistance to corrosion in seawater, chloride-ion environments, nitric acid, acetic acid, alkaline solutions, and most organic acids-far surpassing that of stainless steel.
- Non-magnetic and Highly Biocompatible: Suitable for medical implants and electronic devices.
- Good Welding and Machinability: Can be welded using conventional methods such as TIG and MIG, and can undergo hot and cold processing including turning, milling, drilling, and forging.
- High and Low Temperature Resistance: Performance remains stable within the range of −253 °C to 400 °C, maintaining toughness even at low temperatures.
- Advantages of the 50 mm Size: As a medium-to-large-sized bar, it is suitable for direct turning of shaft components, flange blanks, and fastener blanks, thereby reducing material waste.
Smart Manufacturing Process Flowchart
Mechanical Properties
- Tensile Strength σb ≥ 345 MPa (50 ksi)
- Yield Strength σ0.2 ≥ 275 MPa (40 ksi)
- Elongation δ ≥ 20%
- Cross-sectional Contraction ≥ 35%
- Hardness Approx. HB 160–200 / HRB 80–90
- Density 4.51 g/cm³ (approximately 60% that of steel)
- Melting point Approx. 1668 °C

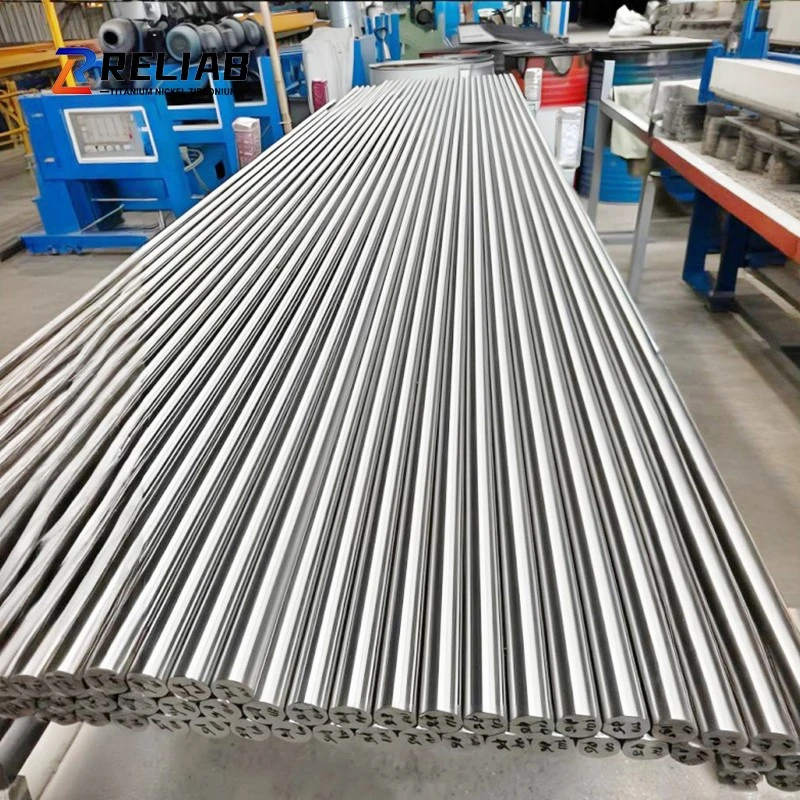

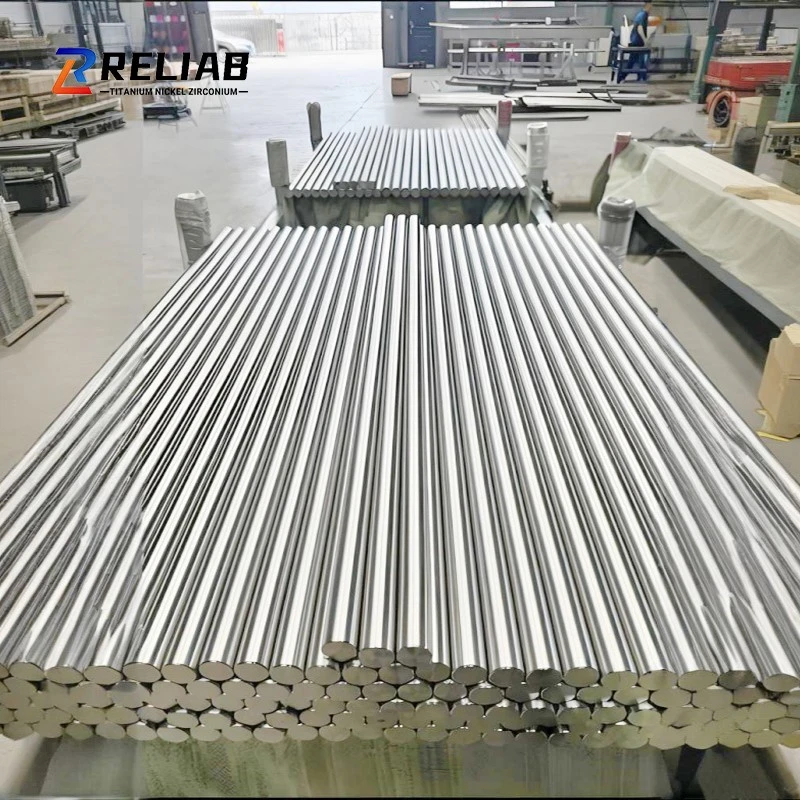

Products Display
Product Advantages
-
Outstanding corrosion resistance
GR2 exhibits excellent corrosion resistance in both oxidizing and mildly reducing environments.
-
Excellent Welding Performance
GR2 offers excellent weldability and is suitable for various welding methods, including TIG and MIG. The resulting weld joints are strong and resistant to brittle fracture.
-
Good processability
The GR2 can perform conventional machining operations such as sawing, turning, drilling, and milling, and also supports forming processes such as cold bending and cold drawing.
-
High strength-to-weight ratio, lightweight
GR2 has a much higher specific strength than ordinary steel and aluminum alloys; a 50-mm titanium rod weighs only about 57% as much as a steel rod of the same size.
FAQ
Q: Can you supply other diameters?
A: Yes ,50mm is our listed size; diameters from 1.0mm to 150mm are available in stocks.
Q: Do you provide a material certificate?
A: Yes, every batch ships with a mill test certificate covering chemical composition and mechanical properties.
Q: Can the bar be cut to my length?
A: Yes, precision cut-to-length is available before shipment.
Q: What is the MOQ?
A: Our MOQ is 5kgs.
