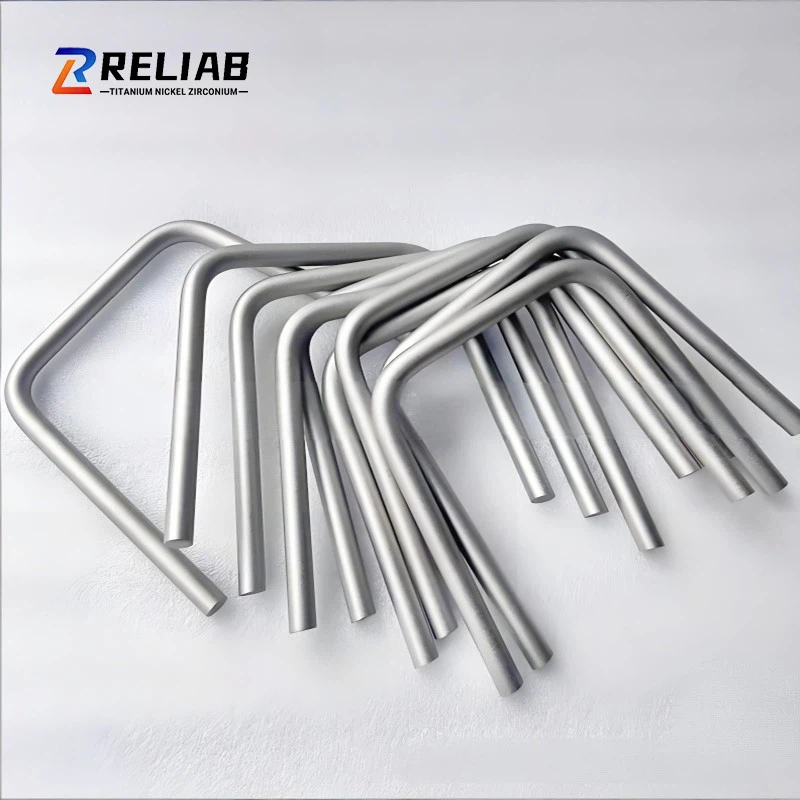

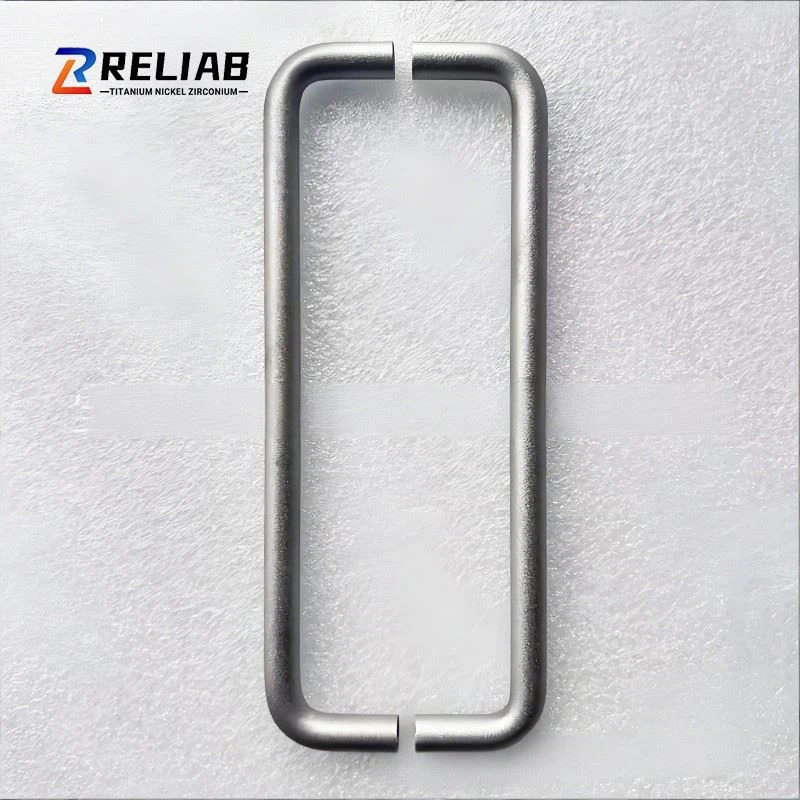

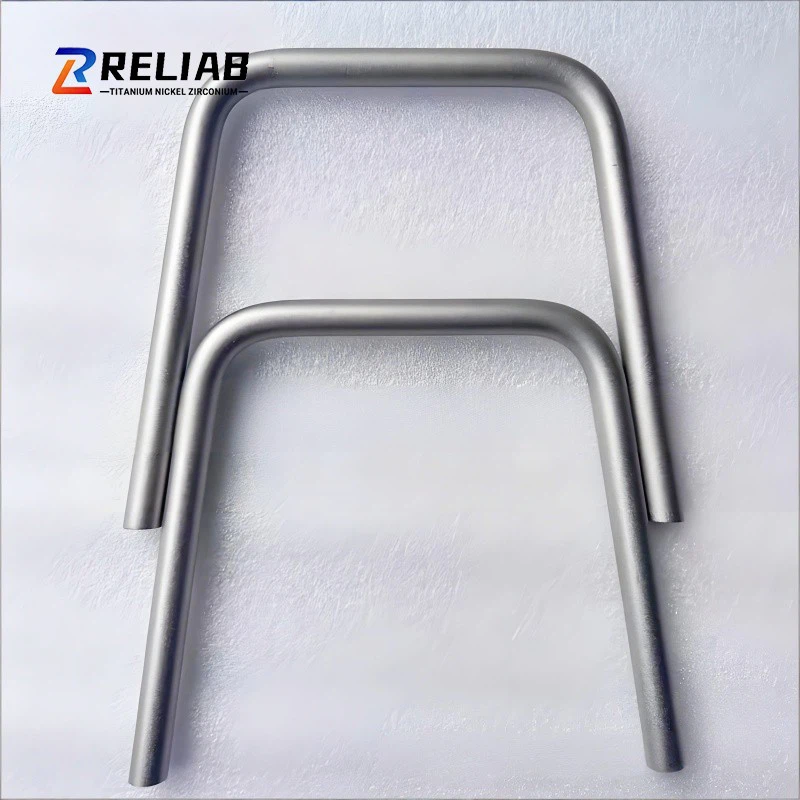

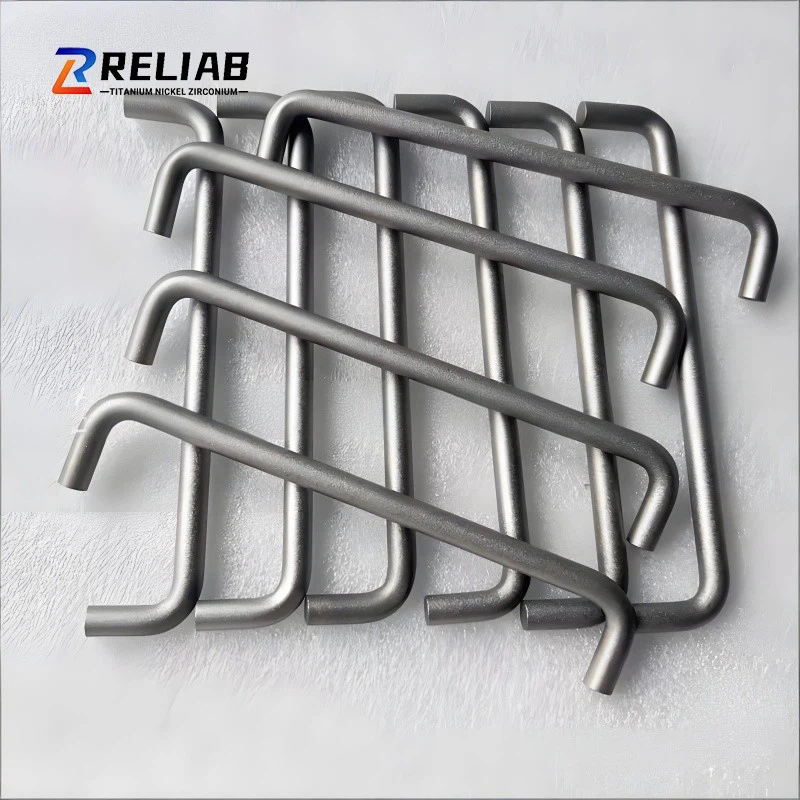

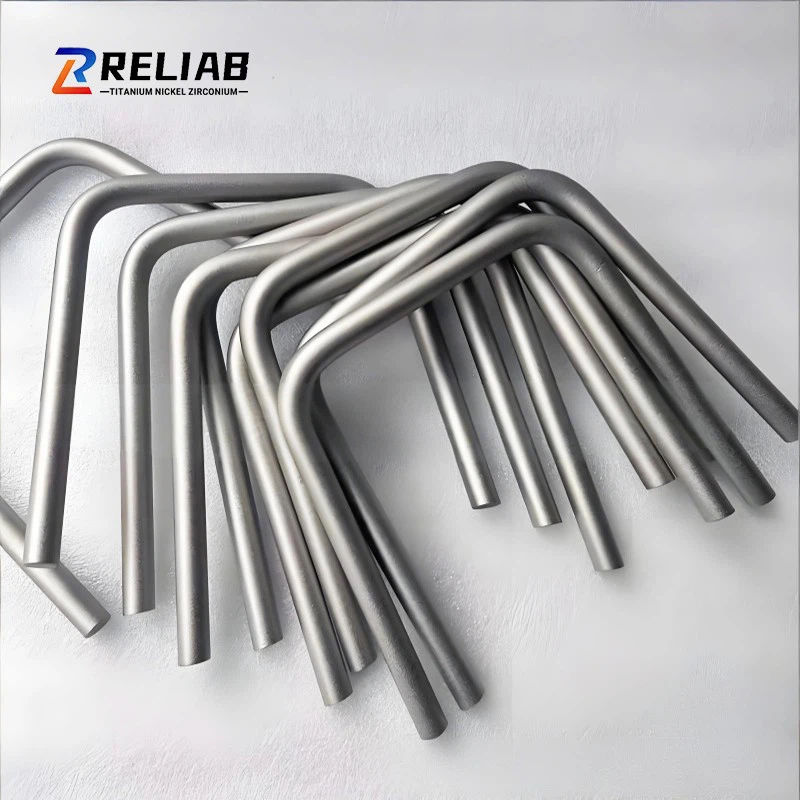

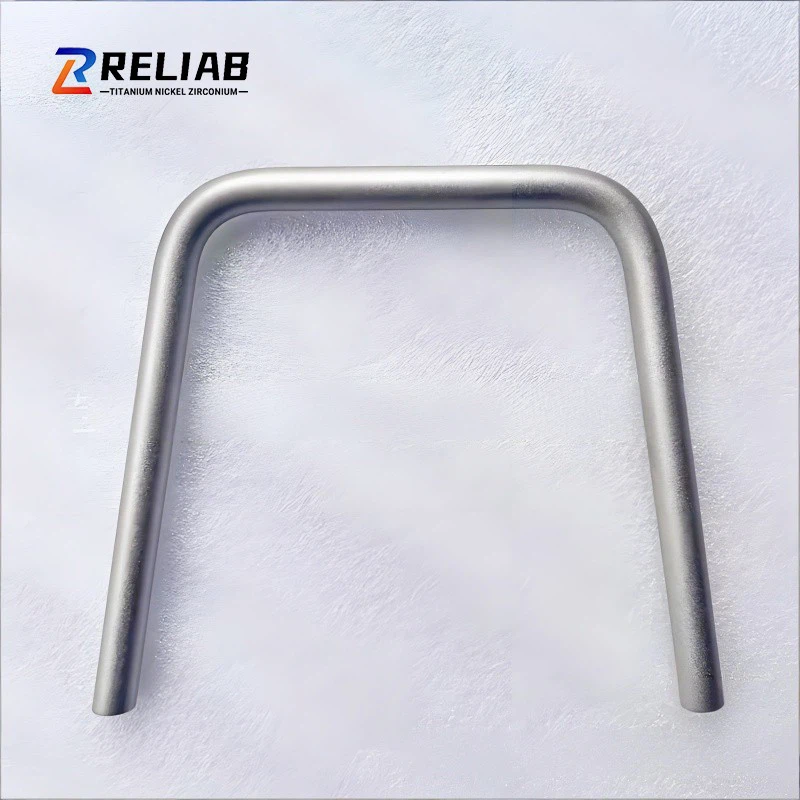

Bending Titanium Pipes For Aerospace Engineering

1. Density: 4.51 g/cm³ (approximately 57% that of steel)
2. Melting point: 1668°C
3. Coefficient of thermal expansion: 8.6×10⁻⁶/°C (approximately half that of steel)
4. Modulus of elasticity: 110 GPa (approximately half that of steel)
5. Thermal conductivity: 17 W/(m·K) (approximately one-quarter that of steel)

Mainstream Methods for Bending Titanium Tubes (Cold Bending / Warm Bending / Hot Bending)

1. Cold Bending Process (Primarily Gr1/Gr2, φ ≤ 50 mm, t ≥ 1.5 mm)

Applications: Small diameters, medium wall thicknesses, R/D ≥ 3, high precision requirements, no heat treatment required

Key Equipment: CNC bending machine (with mandrel, anti-wrinkle die, and pressing die), mandrel-less rolling, push bending

2. Warm Bending Process (200–450°C; Gr5/TGr9 preferred)

Applications: α-β alloys such as Gr5; R/D ratio of 2.5–3; medium diameters; balances ductility and mechanical properties

Core Principles: Heating increases ductility, lowers the yield strength, reduces springback, allows for smaller R/D ratios, and prevents grain coarsening at high temperatures

3. Hot bending process (600–800°C; large diameter, thin-walled, small R/D ratio, β-alloys)

Applications: φ ≥ 60 mm, t ≤ 2 mm, R/D ≤ 2.5, Gr5/β-alloys, complex high-angle bends

1. Key Process Control Points

• Material Condition: Must be in the annealed condition (M condition); cold bending is strictly prohibited for materials in the solution-treated or aged condition, as insufficient plasticity may lead to cracking.
• Wall Thickness Reduction: ≤12% (aerospace), ≤15% (general-purpose); cracks on the outer surface are strictly prohibited.
• Cross-sectional Distortion: Ellipticity ≤5%–8% ((Dmax – Dmin)/D) × 100%
• Angular Accuracy: ±0.5° to ±1°, with adequate springback compensation
• Surface: Free of scratches, indentations, oxidation, and cracks; acid wash or polish as necessary

2. Inspection Items

• Appearance: Visual inspection + Penetrant Testing (PT) to detect surface microcracks
• Dimensions: R/D, angle, ovality, wall thickness (ultrasonic thickness measurement)
• Performance: Tensile, hardness, and residual stress tests as required
• Air/Water Pressure: Pressure-bearing pipe fittings must undergo leak testing
