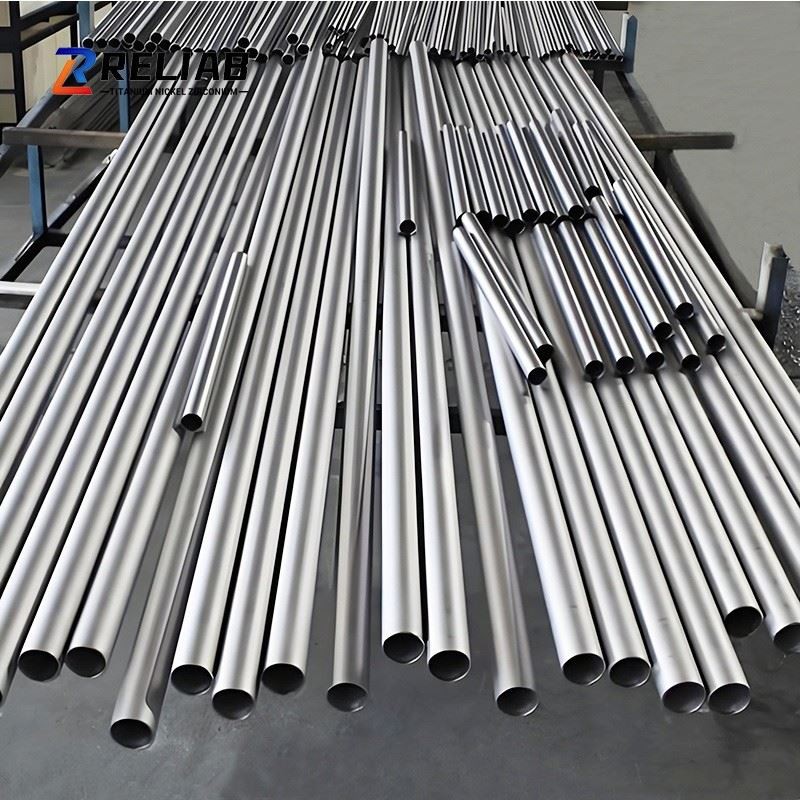

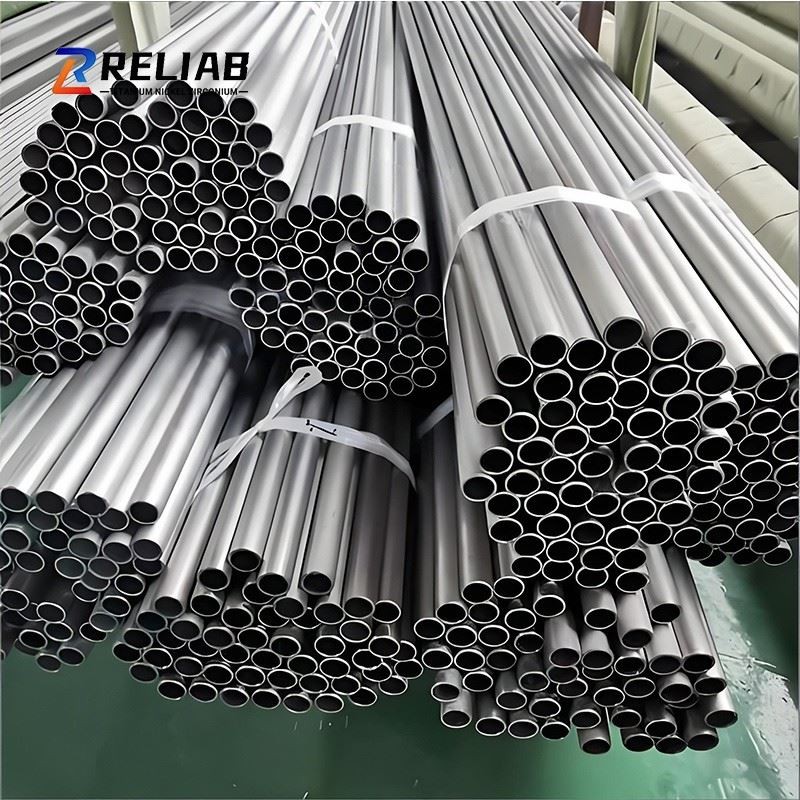

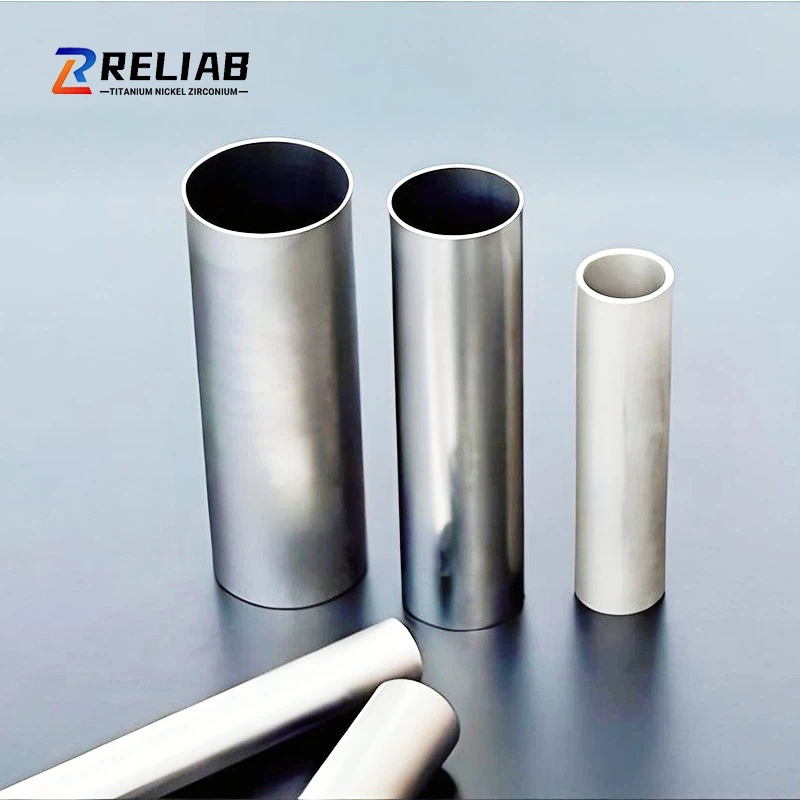

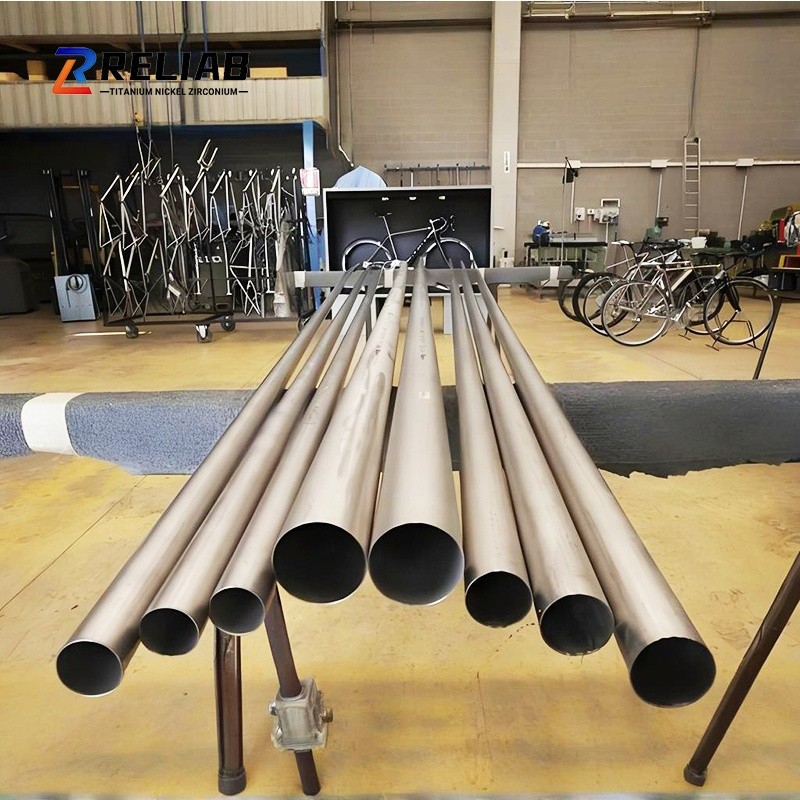

Titanium Tubing For Bicycle

Titanium tubing for bicycles is a high-performance material manufactured from titanium alloy through precision machining. It is the ideal material for producing core components such as high-end bicycle frames, forks, and handlebars. Renowned for its ultra-high strength-to-weight ratio, exceptional corrosion resistance, excellent fatigue resistance, and unique riding comfort, it is hailed as the "gold standard" in the world of bicycle materials.

1. Outer Diameter: Φ4 mm – Φ219 mm
2. Wall Thickness: 0.5 mm – 20 mm
3. Length: 1,000 mm – 6,000 mm (custom lengths available)

Tolerances:

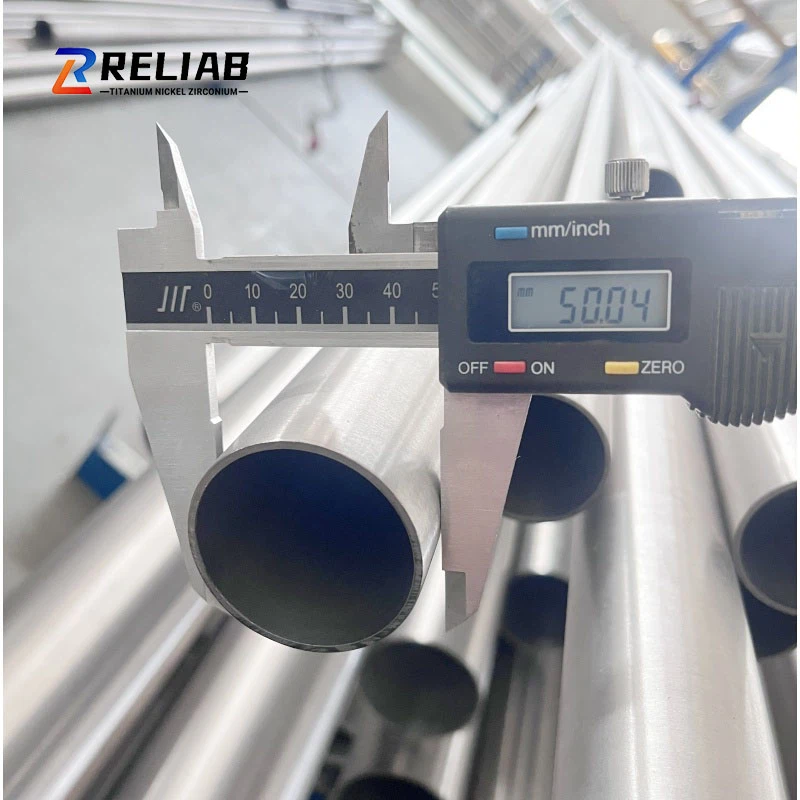

1. Precision Tubing: Outer Diameter ±0.05 mm, Wall Thickness ±0.05 mm
2. Industrial Tubing: Outer Diameter ±0.1 mm, Wall Thickness ±0.1 mm

The bicycle industry primarily uses the following types of titanium alloy tubing:

1. Grade 9 (Ti-3Al-2.5V) -- The industry standard

Composition: 3% aluminum (Al) + 2.5% vanadium (V) + 94.5% pure titanium.

Properties: A perfect balance of strength, ductility, weldability, and fatigue resistance. Tensile strength is approximately 810–960 MPa, with a modulus of elasticity of 110 GPa.

Applications: Main triangle of the frame (top tube, down tube, seat tube), rear fork, front fork, etc. It is the most versatile "sweet spot" material.

2. Grade 5 (Ti-6Al-4V) -- High Strength

Composition: 6% aluminum + 4% vanadium.

Properties: Approximately 50% higher strength than Grade 9, with greater rigidity, but more challenging to weld and machine.

Applications: Local reinforcement in high-performance frames (e.g., head tube, bottom bracket shell, disc brake mounts) and high-strength components.

3. Grade 2 (CP Ti) -- Commercially Pure Titanium

Composition: Purity > 99.2%.

Properties: Excellent ductility and exceptional corrosion resistance, but the lowest strength.

Applications: Entry-level titanium frames, small components, and decorative parts.

• Excellent strength-to-weight ratio: Density of 4.48 g/cm³, yet strength comparable to steel
• Corrosion resistance: Excellent performance in seawater and chloride environments, no coating required
• Fatigue life: Stable performance under cyclic loading with high fatigue strength
• Riding feel: Titanium's unique elastic modulus provides a distinctive road feel-more comfortable than aluminum and lighter than steel
• Lifetime durability: Corrosion resistance + no fatigue limit (under reasonable stress), theoretically capable of lasting indefinitely

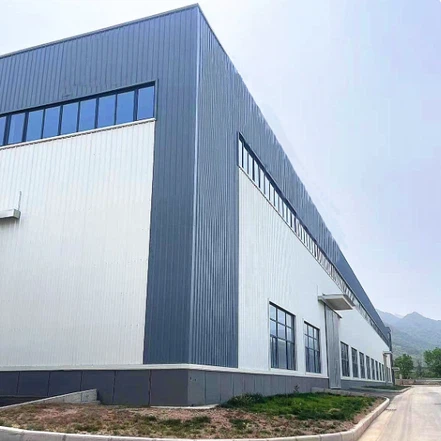

Baoji Reliab Metal Material Co.,Ltd is a professional manufacturer and supplier of Titanium mill products and Nickel,Zirconium products. With high quality controlling system, our products meeting the international standard as ASTM, ASME, AMS, JIS, DIN, TOCT, our main products including bars/rods, plates/sheets, tubes, wires, forgings rings, anodes, fasteners and CNC machined parts.

For over 12 years,Baoji Reliab Metal Material has grown as one of the steady suppliers for aerospace-grade titanium and medical-grade titanium products field in China.
