Why Titanium Is Different on a CNC Machine
Titanium has a justified reputation as a demanding machining material, and the reasons are physical, not procedural:
Low thermal conductivity - roughly a quarter of steel's - means heat generated at the cutting edge does not flow into the chip; it flows into the tool. Uncooled cuts destroy carbide inserts quickly.
Low elastic modulus causes the workpiece to spring away from the cutter, producing rubbing, chatter, and dimensional drift on thin walls.
Work hardening and chemical reactivity: titanium work-hardens at the cut surface and reacts with tool materials at high interface temperatures, accelerating edge wear.
Gummy chip behavior, especially in the commercially pure grades, produces stringy chips and burrs that demand disciplined deburring.
The net effect: Ti-6Al-4V machines at a typical machinability index of only about 20–25 % of a free-machining reference steel. None of this makes titanium unmachinable - it makes grade selection and stock condition decisive for cost, tolerance, and tool life.
Mainstream Titanium Grades Suitable for Precision Machining
1. Commercially Pure Titanium Grade 2 (Gr2 / Ti Grade 2)
- Material Properties: Purity ≥99.2%; offers moderate strength, excellent plasticity and toughness, and strong resistance to general corrosion.
- Precision Machining Characteristics: Exhibits the best machinability among all titanium grades with a low tendency for "galling" (sticking to the cutting tool). It allows for high-precision cold forming, bending, and stamping, with excellent dimensional stability and a low risk of cracking in thin-walled components.
- Typical Precision Applications: Precision shims, sealing rings, chamber components for semiconductor equipment, valve seats for chemical instrumentation, medical connectors, and bases for non-load-bearing heavy-duty fasteners.
- Ideal Use Cases: Best suited for non-load-bearing precision parts that require high corrosion resistance and high forming precision; offers the lowest processing costs and the highest production yield.
2. Ti-6Al-4V (Grade 5 / Gr5 – The Most Versatile Precision Titanium Alloy)
- Material Properties: An α+β dual-phase titanium alloy with more than twice the strength of commercially pure titanium. It offers the best overall mechanical properties, with strength and toughness that can be adjusted through heat treatment.
- Precision Machining Characteristics: Highly versatile for precision machining; processes such as turning, milling, drilling, and tapping are well-established. It can consistently achieve tolerances of ±0.005 mm and surface roughness values below Ra 0.8. While it has a slightly higher tendency for galling compared to pure titanium, mature processing solutions are available, making it the preferred grade globally for precision structural components.
- Variants:
- Gr5 ELI (Grade 23): An "Extra Low Interstitial" version with fewer impurities, offering superior toughness, enhanced dimensional stability, and an absence of internal defects-ideal for high-precision, medical-grade implants.

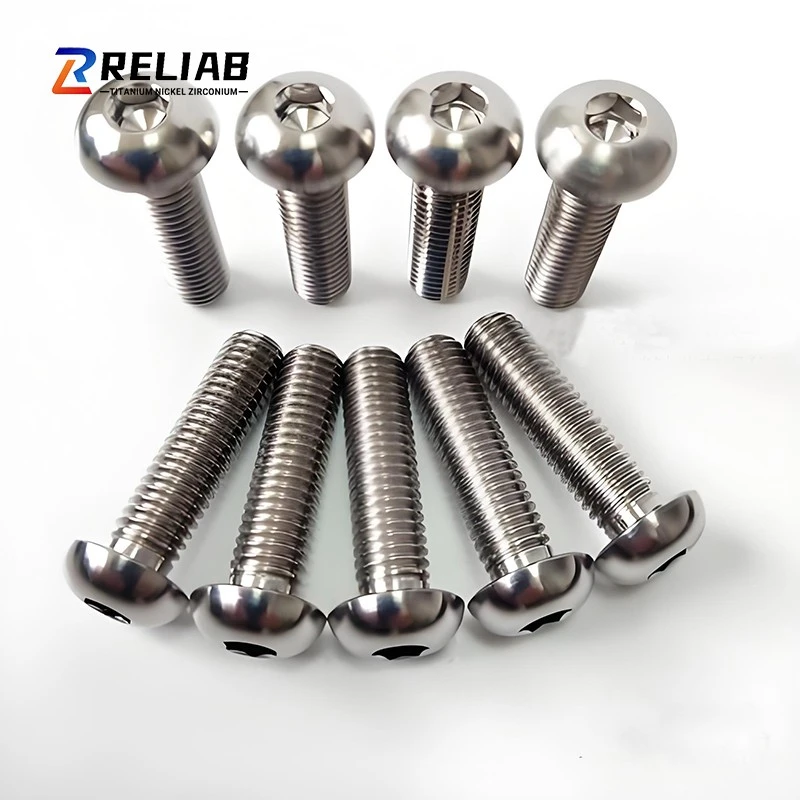

- Aerospace-Grade Gr5: Features strictly controlled grain size and chemical composition, ensuring high batch-to-batch consistency; suitable for high-precision aerospace fasteners. - Typical precision applications: Precision bolts and nuts for aerospace and racing, structural suspension components, orthopedic implant screws, precision valve spools for hydraulic systems, precision frames for drones, and precision gears.
- Ideal use cases: The go-to choice for load-bearing precision structural components; it offers an optimal balance of strength, machinability, and cost, meeting over 80% of requirements for precision titanium parts.
3. Ti-0.2Pd (Grade 7 / Gr7 – Specialized for corrosion-resistant precision components)
- Material properties: Based on commercially pure titanium with the addition of 0.2% palladium, this grade offers significantly enhanced resistance to crevice corrosion and acids, with ductility comparable to Grade 2 (Gr2).
- Precision machinability: Machining difficulty is similar to that of Gr2; it performs exceptionally well in turning, drilling, and precision stamping. It exhibits better resistance to tool adhesion (galling) than most titanium alloys and maintains dimensional stability without corrosion-induced deformation during long-term use.
- Typical precision applications: Precision sensor housings for marine environments, precision components for chemical process pumps, instrumentation parts for highly acidic operating conditions, and precision valves for oil and gas extraction.
- Ideal use cases: A dedicated grade for precision components in highly corrosive environments; it combines excellent machinability with high value-add potential.
4. Ti-3Al-2.5V (Grade 9 / Gr9 – The preferred choice for precision-machined tubing)
- Material properties: A near-alpha titanium alloy with strength higher than commercially pure titanium but lower than Grade 5 (Gr5); it features outstanding cold-forming and welding characteristics.
- Precision machinability: Cold-drawn and cold-rolled tubing offer extremely high precision, with wall-thickness tolerances controllable within ±0.05 mm. It demonstrates excellent dimensional stability during turning and tube-bending, with minimal springback.
- Typical precision applications: Precision hydraulic conduits for aerospace, precision fuel and brake lines for racing vehicles, precision frame tubing for bicycles, and precision needle tubing for medical devices.
- Ideal use cases: The optimal choice for tubular or thin-walled precision components, offering far superior forming precision compared to Grade 5 (Gr5). 5. Additional Alloy Grades for Specialized Applications (Brief descriptions provided as needed, reflecting technical depth)
- Ti-6Al-2Sn-4Zr-2Mo (Gr6): Exhibits excellent high-temperature creep resistance; suitable for precision components in aero-engines operating at temperatures up to 500°C.
- Ti-10V-2Fe-3Al: A high-strength, high-toughness β-titanium alloy; well-suited for the finish-machining of complex, precision-forged parts, such as high-load components for aircraft landing gear.
We offer a comprehensive range of titanium products-including bars, plates, tubes, and standard fasteners-across all common grades. We also provide custom precision-machined components. All products strictly adhere to ASTM/ASME standards and come with full material certification and batch traceability, meeting the high-precision manufacturing requirements of sectors such as aerospace, motorsports, medical, and chemical processing.
