1. Products introduction
Titanium alloy motorcycle oil cap screws M12-also known as titanium Torx-flange bolts-are high-performance fasteners featuring a Torx (star-shaped) internal drive and an integrated flange. Due to the petal-like or 12-point star appearance of the head, they are commonly referred to in the industry as "flower-head" (or Torx-head) screws.
These fasteners combine the high-torque transmission capability of a Torx drive with the load-distributing benefits of a flanged base. When paired with the inherent advantages of titanium alloy-namely its high strength-to-weight ratio and excellent corrosion resistance-they serve as an ideal, upgraded fastening solution for high-end automotive modifications, aerospace applications, and precision equipment.
2. Range of specifications and dimensions
- Metric Specifications
- Thread Diameter: M2 / M2.5 / M3 / M4 / M5 / M6 / M8 / M10 / M12 / M14 / M16
- Thread Pitch: Standard coarse pitch (e.g., M6×1.0, M8×1.25, M10×1.5); fine pitch available upon request
- Shank Length: 6mm – 120mm (standard stock); lengths exceeding 200mm available via custom order
- Thread Type: Fully threaded or partially threaded (with unthreaded shank) options available
- Flange Diameter: Approximately 1.6–1.8 times the thread diameter
- Imperial Specifications
- Thread Series: UNC / UNF
- Common Sizes: #4-40, #6-32, #8-32, 1/4"-20, 5/16"-18, 3/8"-16
3. Specifications Table
Titanium alloy motorcycle oil cap screws M12
| Item |
Detail
|
|---|---|
| Material | Grade 5 titanium alloy, Ti-6Al-4V (UNS R56400) |
| Material Standard | ASTM B348/B348M |
| Drive Type | Hexalobular (Torx), ISO 10664:2014 |
| Drive Sizes | T6 · T8 · T10 · T15 · T20 · T25 · T27 · T30 |
| Thread Options | ISO metric coarse M2–M8; #4-40 to 1/4"-20 UNC |
| Head Styles | Button head · Flat/countersunk head · Socket cap |
| Finish | Electrolytic anodized - blue, purple, gold, bronze, rainbow; natural (uncoated) available |
| Weight | Approx. 45% lighter than same-size stainless steel screws |
| Corrosion Resistance | Excellent in sweat, seawater, salt spray and road chemicals |
| Tensile Strength (Ti-6Al-4V) | Min. 895 MPa (annealed bar, per ASTM B348) |
| Included | Screws only; Torx drivers sold separately |
| Custom Orders | OEM service: custom lengths, head styles, colors, retail packaging |
4. Head structure
1. Torx Drive
- Features a 6-lobed star-shaped contact interface, ensuring more uniform torque transmission and significantly reducing the risk of "cam-out" (slippage).
- Capable of handling approximately 30% more torque than a standard hex (Allen) drive, while minimizing wear on both the tool and the screw head.
- Offers excellent centering, providing superior stability when used with high-speed power tools.
- Corresponding bit sizes: M4→T20, M5→T25, M6→T30, M8→T40, M10→T50.
2. Flanged Bearing Surface
- The integrated flange increases the contact area, effectively distributing clamping force.
- Prevents the fastener from sinking into or damaging the surface of the component being secured.
- Provides an inherent anti-loosening effect, reducing the risk of the fastener coming loose in high-vibration environments.
- Eliminates the need for separate flat washers, streamlining the assembly process.
3. Decorative Petal-Shaped Outer Profile
- The outer edge of the flange features a 12-lobed "petal" design, offering both aesthetic appeal and easy identification.
- Allows for external tightening or adjustment using specialized tools.
- Delivers a striking visual impact, making it a signature component for aesthetic upgrades in custom modification projects.
5. Surface treatment
Our Service
Create a comprehensive solution for efficient human theft manag
01
As-Machined (Natural Finish)
- Retains the natural silver-gray color and original texture of the titanium metal.
- Features a dense, self-forming TiO₂ passivation layer, providing inherent basic corrosion resistance.
- Most cost-effective option; widely used in industrial equipment applications.
02
Anodizing and coloring
The thickness of the oxide film is controlled via electrochemical oxidation; light interference creates various colors without the use of any dyes, ensuring the colors are permanent and will not fade or peel off.
- Common colors: Titanium gold, royal blue, purple, green, black, and rainbow gradients.
- Added value: Surface hardness is increased by 2–3 times, with enhanced wear resistance.
03
PVD (Physical Vapor Deposition)
Available in black, gold, and burnt-blue; characterized by high-temperature resistance and durability
Making it suitable for extreme environments such as automotive and motorcycle engines.
6. Comparison of Screw Head Types
Torx vs. Hex vs. Phillips
| Torx (Hexalobular) | Hex Socket | Phillips | |
| Torque transfer | Excellent - 6 curved contact lobes | Good | Poor, prone to cam-out |
| Self-centering | Yes - bit seats itself | Partial | No |
| Socket wear over repeated use | Very low | Moderate | High |
| Stripped-head risk on small screws | Low | Moderate | High |
7. Main Application Areas
Titanium alloy motorcycle oil cap screws M12
01/
Motorcycles and Customization
- Motorcycles: Brake disc fasteners, engine side covers, footpegs, handlebars, swingarms, and wheel hub modifications
- Bicycles: Lightweight upgrades for mountain/road bike stems, seatposts, disc brake calipers, hubs, and racks
- Automotive Tuning: Wheel hub bolts, chassis reinforcement components, engine bay aesthetic parts, and exhaust system mounting hardware
02/
Aerospace and Defense
- Aircraft structural components, avionics, and satellite parts
- Fastening for drone airframes and propulsion systems
03/
Marine and Naval Engineering
- Fasteners for yachts, sailboats, and diving equipment
- Equipment for seawater desalination and offshore platforms
04/
Chemicals and Energy
- Fasteners for chlor-alkali equipment, pickling production lines, and reaction vessels
- Equipment for oil and gas extraction, as well as desulfurization and denitrification systems
05/
Premium Outdoor & Sports
- Diving equipment, mountaineering gear, camera tripods
- Fishing gear, bicycles, electric scooters
06/
Medical and Precision Instruments
- Surgical instruments, medical equipment structural parts
- Optical instruments, semiconductor equipment

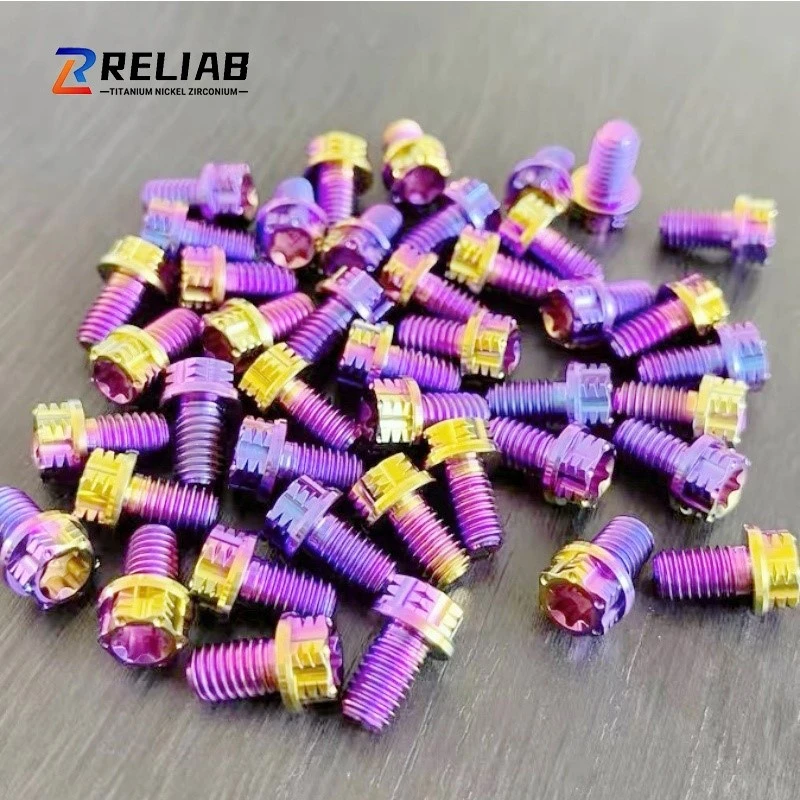

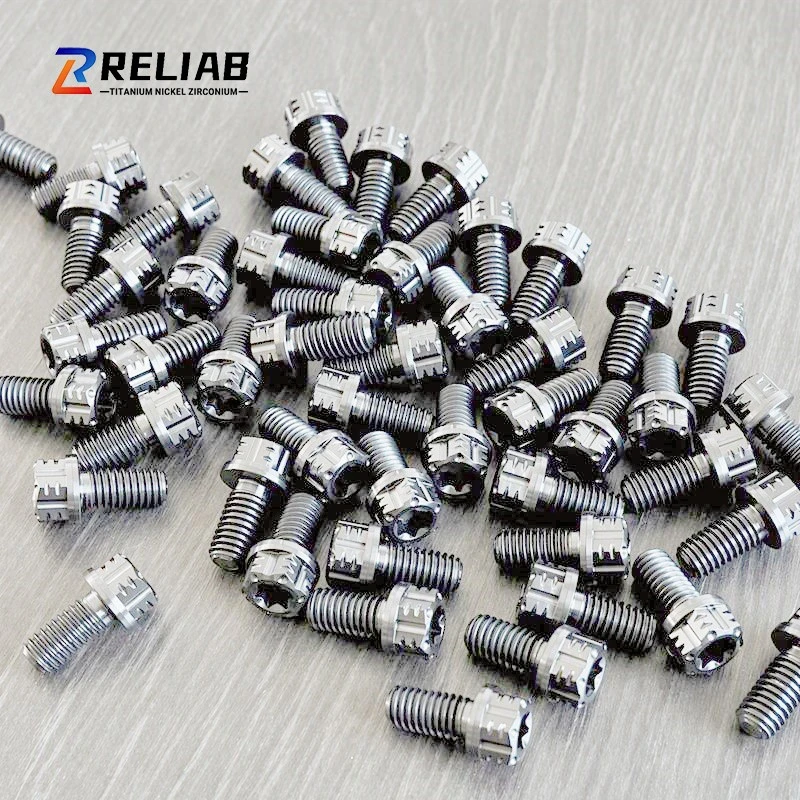

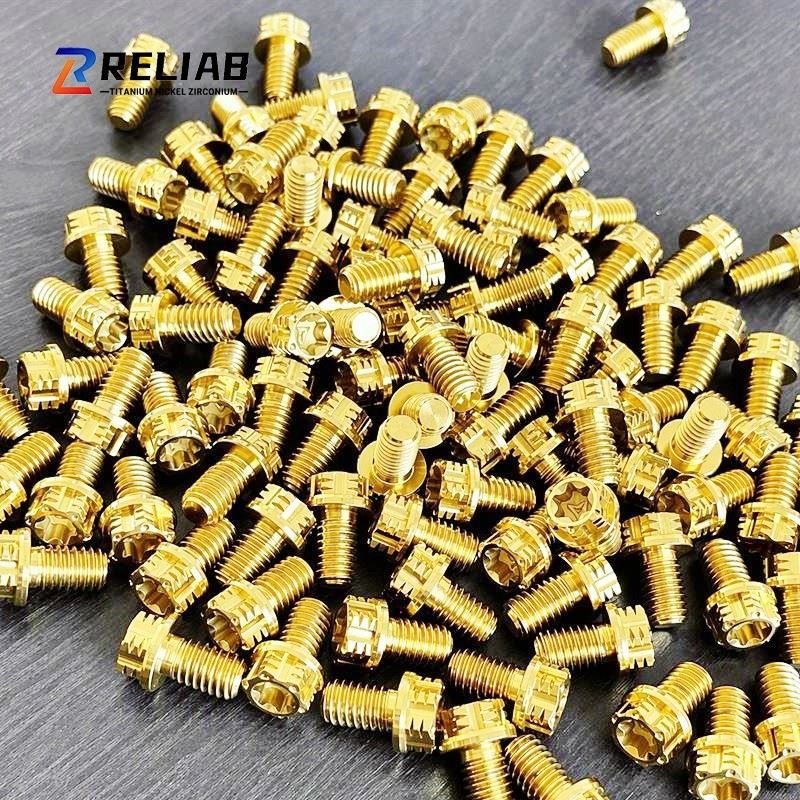

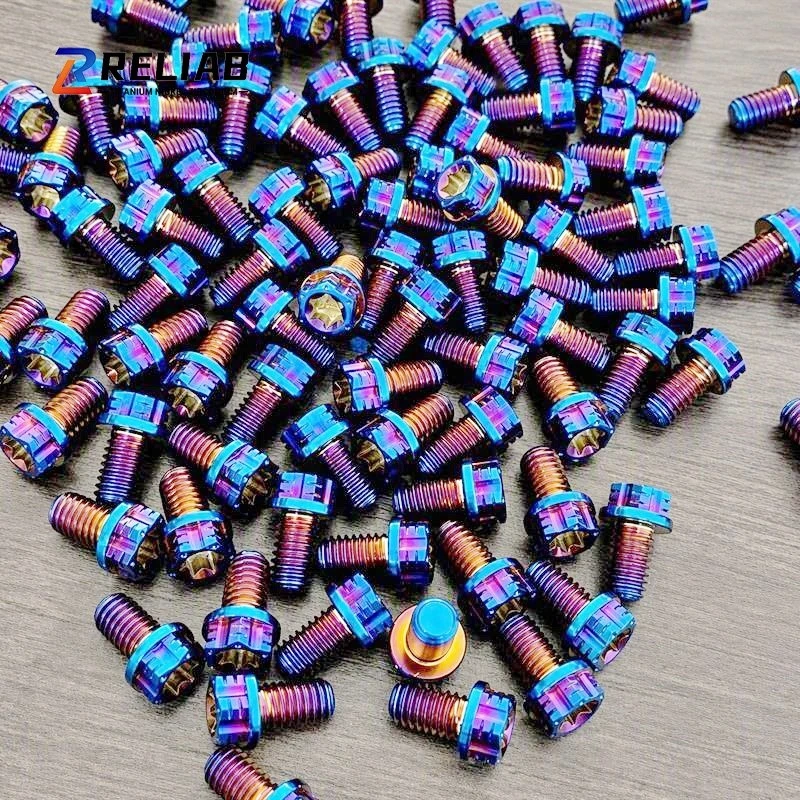

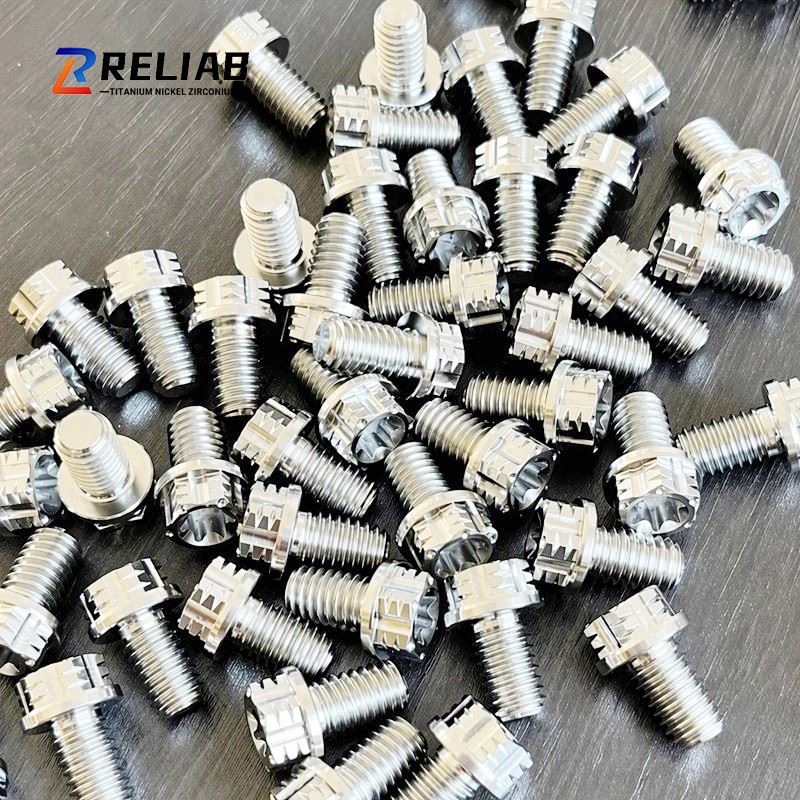

8. Products showcase
9. FAQ
FAQ
Q: Are titanium screws actually strong, or just for looks?
A: Grade 5 (Ti-6Al-4V) is a genuine aerospace structural alloy with a minimum tensile strength of 895 MPa - far stronger than needs to be for bodywork, panels, knives and EDC. For high-stress structural joints, follow the OEM hardware spec.
Q: Will the anodized color chip or fade?
A: No paint is involved. The color comes from a controlled oxide layer grown on the titanium surface - it can't peel or flake like a coating and is highly resistant to UV and sweat. Only deep scratches can remove it.
Q: Do titanium screws rust?
A: Never. Titanium forms a self-healing passive oxide film and is effectively immune to the rust, sweat staining and salt corrosion that plague steel fasteners.
Q: Do you offer custom sizes, colors or OEM packaging?
A: Yes. As the manufacturer we take custom length, head style, color and retail-packaging orders with low MOQ. Contact us with your drawing or sample.
