Laser Cutting Titanium Sheet Metal

Item name:Laser cutting titanium sheet metal
Material:CP Titanium Gr1,Gr2,Gr3;Titanium alloy Gr5,Gr7,Gr9,Gr12
Standard:ASTM B265,AMS 4911
Cutting method:Laser cutting,water-cutting;
Size：Can cut into any size,according to customers requirement

Send Inquiry

Description

What is Laser cutting titanium sheet metal?

Laser cutting of titanium sheet involves using a focused, high-power density laser beam to scan the surface of the workpiece, rapidly heating the titanium to temperatures of several thousand or even tens of thousands of degrees Celsius. This causes the irradiated titanium to melt, vaporize, burn, or reach its ignition point. Simultaneously, a high-speed gas stream, coaxial with the laser beam, is used to blow away the molten material, thus cutting through the titanium sheet and achieving the desired cutting result.

The unique advantages of laser cutting titanium sheet metal

1. High Precision: Laser cutting titanium sheet can achieve precise cutting in very small spaces, making it ideal for machining parts requiring high precision, such as some precision components in the aerospace industry.

2. High Efficiency and Flexibility: Compared to traditional machining methods, laser cutting is faster, and the cutting path is program-controlled, allowing for easy adjustment of the cutting path, speed, and power to flexibly meet different processing needs.

3. Minimal Heat Impact: The heat-affected zone of laser cutting is small, reducing material deformation and stress, resulting in better processing results. For example, when cutting thin titanium sheets, there is almost no noticeable thermal deformation.

4. Strong Adaptability: Laser cutting can handle titanium alloy materials of various thicknesses and hardness levels.

Key factors affecting cutting quality

A. Laser Power: The appropriate laser power should be selected based on the material and thickness of the titanium sheet. Excessive power may cause overheating, uneven melting, or cracking of the material; insufficient power may result in incomplete cutting.

B. Cutting Speed: The cutting speed affects the heating and cooling rate of the material. Too fast a speed may result in incomplete cutting, while too slow a speed may cause excessive melting and enlarge the heat-affected zone.

C. Focal Point Position: The position of the laser beam's focal point determines the energy distribution on the material surface; inaccurate positioning will affect cutting accuracy and quality.

D. Auxiliary Gas: Inert gases (such as argon or nitrogen) are typically used as auxiliary gases to reduce oxidation and contamination, and to blow away molten material during the cutting process.

Products pictures show of Laser cutting titanium sheet metal

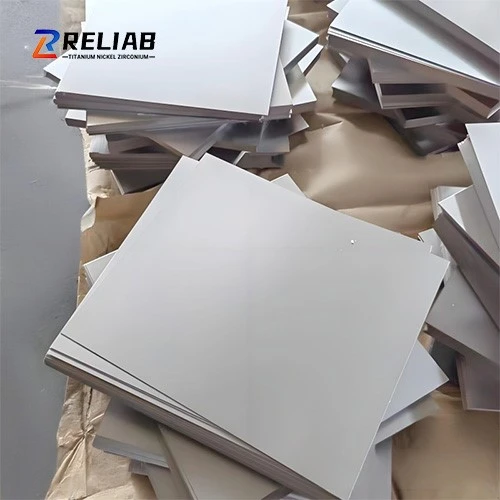

Laser Cutting Titanium Sheet Metal supplier

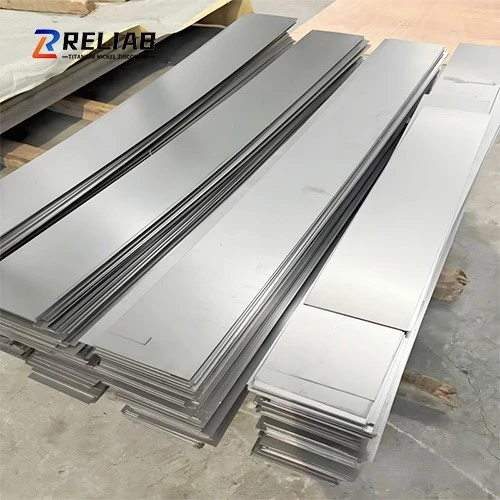

Laser Cutting Titanium Sheet Metal factory in China

What size can we cut for the Laser cutting titanium sheet metal?

Material: We can cut the material of CP Titanium Gr1,Gr2,Gr3;Titanium alloy Gr5,Gr7,Gr9,Gr12.

Thickness: 0.5MM~14MM

Width:2mm~500mm

Length:Less than 6000mm

MOQ: 1piece

Shape: Square, Round, Rhombic,Rectangle

FAQ(Frequently Asked Questions)

Q: Can the Laser cutting titanium sheet metal be used in medical field?

A: Yes our Laser cutting titanium sheet metal are widely used in medical implant, dental, artificial bone joints, etc.

Q: What are the advantages of titanium metal ?

A: Titanium is light in specific gravity, and has high strength, with corrosion-resistant and non-magnetic.

Q: How does the Laser cutting titanium sheet metal been shipped?

A: We can ship out the goods by International express(like DHL, UPS, Fedex), Air cargo, and Ocean/sea shipping.

Q: What is the delivery time on the Laser cutting titanium sheet metal?

A: Normally we have the stocks for the ordinary sizes(such as thickness of 0.5mm,1.0mm,2.0mm,3.0mm,4.0mm,5.0mm,6.0mm,8.0mm,10mm) and for special size the delivery time will be within round 15days.
