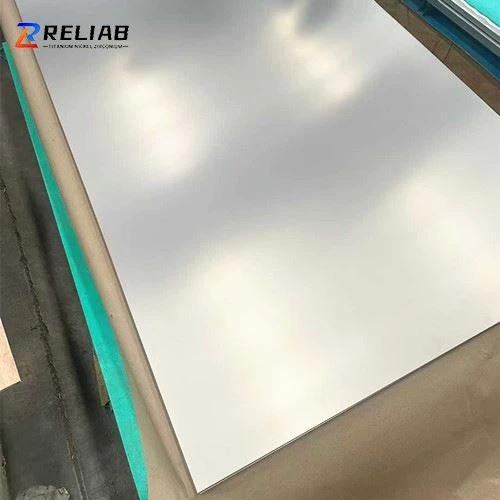

What is CP2 Titanium plate ASTM B265?
CP2 Titanium plate ASTM B265 are metal sheets made from titanium or titanium alloys, featuring with light weight, high strength, corrosion resistance, and good biocompatibility. They are widely used in aerospace, medical, chemical and other fields.
Brief Data of Titanium Plates/Sheets
Standard: ASTM B265, ASTM F67,AMS 4911
Grade:Gr.1 Gr.2 Gr.3 Gr.5 Gr.7 Gr.9 Gr.12
Manufacturing Processes:Rolling, Forging, Annealing
Size:Thickness0.8mm~50.0mm*Width100mm~1500mm*Length1000mm~6000mm
Features: The excellent properties of Titanium Plates include high strength, low density, good mechanical properties, corrosion resistance, high stability and so on. So Titanium & Titanium Alloy Plates always be used in airplane engine components, rockets, missile and other aircraft components.
In addition to that, titanium and titanium alloy plates also can be used in industrial construction , sports equipment, tableware, outdoor supplies and so on. The good performances of titanium plates make it easy to be accept and are more and more familiar by public.
Component WT% of Grade 2 Titanium
|
C Max |
Fe Max |
H Max |
N Max |
O Max |
Ti,Min |
|
0.1 |
0.3 |
0.015 |
0.03 |
0.25 |
99.2 |
Material Data of CP Grade 2 Titanium Plates
|
Metric |
English |
Remarks |
|
|
Physical Properties |
|||
|
Density |
4.51g/cc |
0.163 lb/in³ |
|
|
Mechanical Properties |
|||
|
Hardness, Rockwell B |
98 |
98 |
|
|
Shear Modulus |
38 MPa |
5510 ksi |
|
|
Shear Strength |
380 MPa |
55100 psi |
|
|
Tensile Strength, Ultimate |
430 MPa |
62400 psi |
|
|
Tensile Strength, Yield |
340 MPa |
49300 psi |
|
|
Elongation at Break |
28% |
28% |
|
|
Charpy Impact |
65 J |
47.9 ft-lb |
V-notch |
The Advantages of Titanium Plates:
- Standard: ASTM B265, ASTM F67, ASTM F136, ASTM F1295, ISO 5832-2, ISO 5832-3,ISO 5832-11
- Grade: Gr1, Gr2, Gr3, Gr5(Ti-6Al-4V), Ti-6Al-4V ELI, Ti-6Al-7Nb
- Raw material: Choose the titanium sponge of grade 0(top grade/level)
- Melting: After three times vacuum melting processes in VAR.
- Tolerance: Can make Specialized customization on the plates' tolerance and surface condition.
- Physical Properties: For pure titanium Grade 3, thickness between 1.0mm~6.0mm, the tensile strength can be stably controlled above 520Mpa; For titanium alloy Grade 5 and Grade 23, thickness between 1.0mm~6.0mm, the metallographic rating can be stably controlled within level A1-A4.
- Flaw Detection and Inspection: 100% Ultrasonic flaw detection ensures that there are no metallurgical defects or non-metallic impurities on the surface or inside.
Introduce of Our Factory
Baoji Reliab Metal Material Co.,Ltd is a professional manufacturer and supplier of Titanium mill products and Nickel,Zirconium products. With high quality controlling system, our products meeting the international standard as ASTM, ASME, AMS, JIS, DIN, TOCT, our main products including bars/rods, plates/sheets, tubes, wires, forgings rings, anodes, fasteners and CNC machined parts.
For over 11 years,Baoji Reliab Metal Material has grown as one of the steady suppliers for aerospace-grade titanium and medical-grade titanium products field in China.
*TO BE YOUR RELIABLE AND TRUSTABLE PARTNER AS ALWAYS!!*
