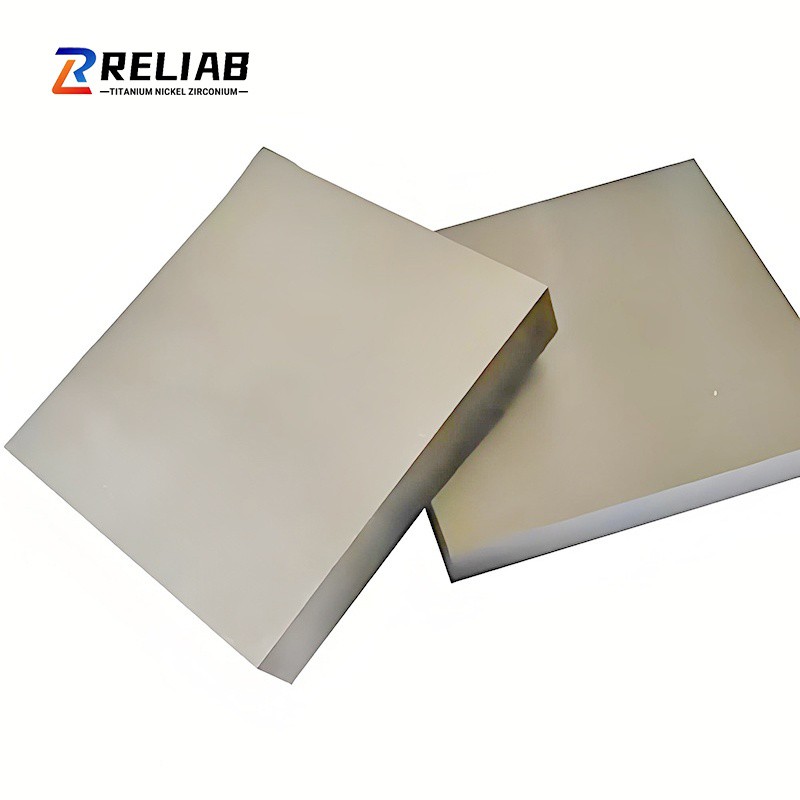

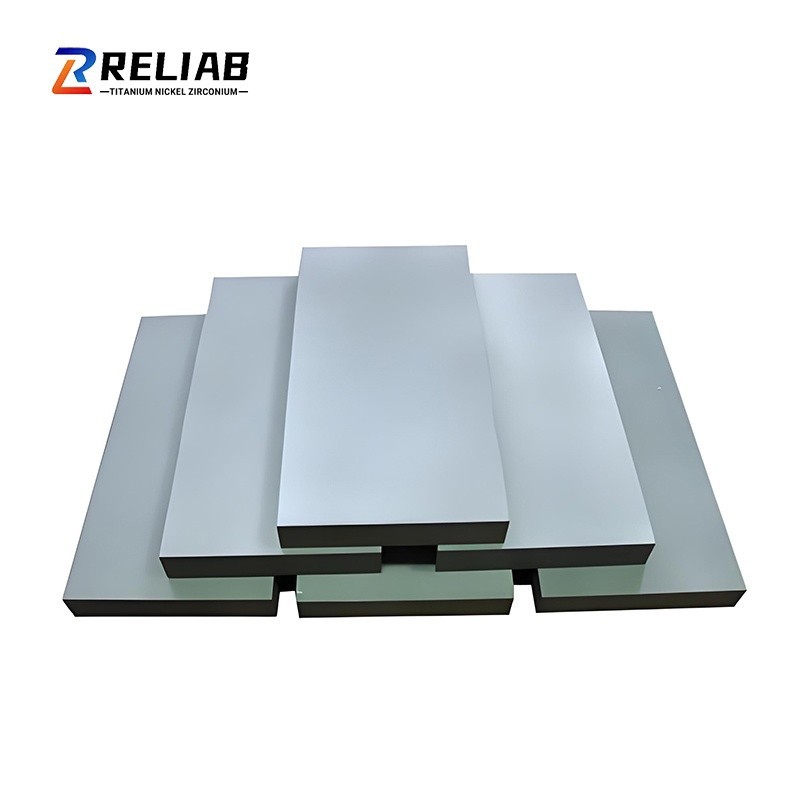

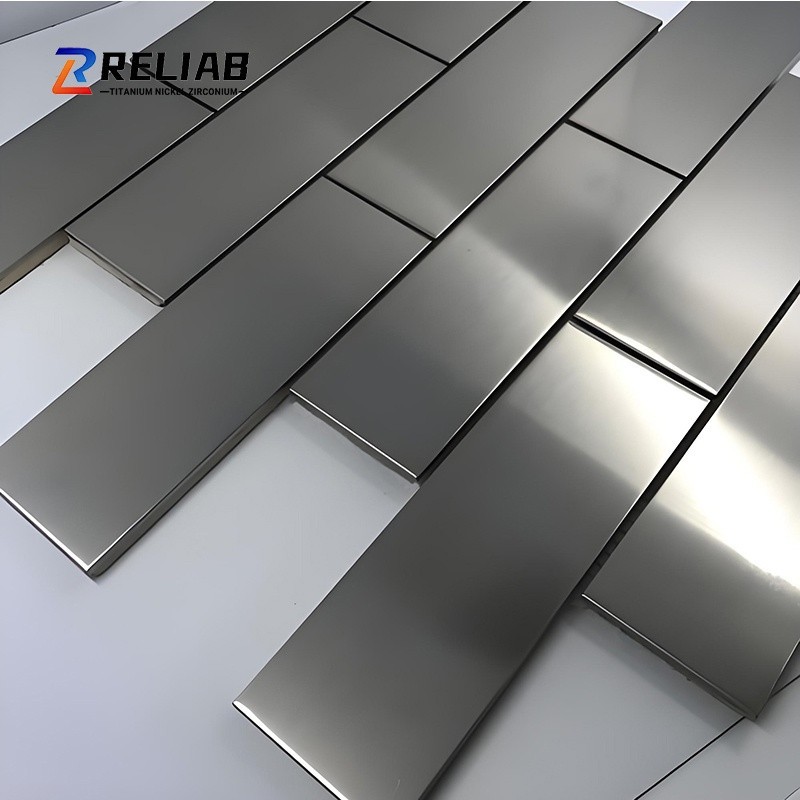

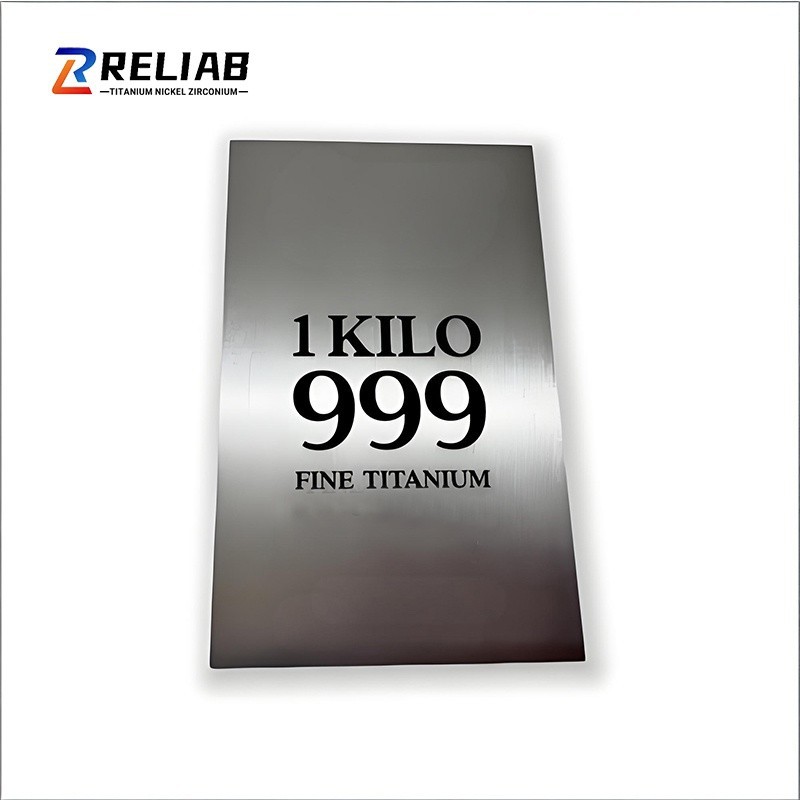

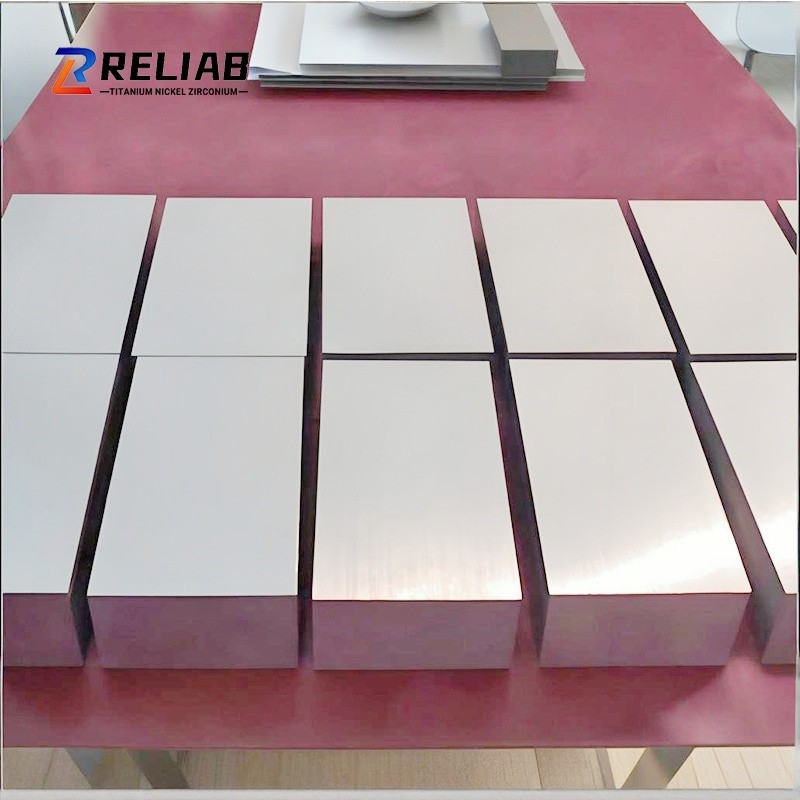

1 Kilogram Of Titanium Bar



Based on the density of titanium (4.51 g/cm³):

Volume of 1 kg of titanium plate = 1000 ÷ 4.51 ≈ 221.7 cm³

Approximate dimensions of a 1 kg titanium plate for different thicknesses:

Thickness 1 mm → Area approx. 0.22 m² (Size approx. 470 × 470 mm)

Thickness 2 mm → Area approx. 0.11 m² (Size approx. 330 × 330 mm)

Thickness 3 mm → Area approx. 0.074 m² (Size approx. 270 × 270 mm)

Thickness 5 mm → Area approx. 0.044 m² (Size approx. 210 × 210 mm)

Thickness 10 mm → Area approx. 0.022 m² (Size approx. 150 × 150 mm)

Simple rule: The thinner it is, the larger 1 kg appears; the thicker it is, the smaller the 1 kg piece is.



Remarks: Custom specifications available upon request.





Features	Value/Description
Density	4.51 g/cm³(About 60% of the weight of steel)
Melting point	1668°C
Tensile strength	CP Titanium for about 345-550 MPa;Titanium alloy can reach to 1000+ MPa
Modulus of elasticity	Around 110 GPa(About half the weight of steel)
Corrosion resistance	Excellent; a dense oxide film forms on the surface
Biocompatibility	Excellent; non-toxic and non-magnetic





1. Hot-Rolled Titanium Sheet

Thickness: Generally ≥3 mm

Surface: Dull, oxidized appearance; slightly wider tolerances

Low cost, high strength

Suitable for structural components, equipment linings, and mold base plates

2. Cold-Rolled Titanium Sheet

Thickness: 0.5–3 mm

Surface: Smooth and bright (2B/BA finish)

High dimensional accuracy and flatness

Suitable for cosmetic parts, precision components, stamped parts, and electrode sheets

3. Titanium Foil

Thickness: 0.01–0.5 mm

Difficult to roll; low yield rate

High cost; commonly used in batteries, electrodes, shielding, and precision instruments





1. Aerospace

Aircraft structural components, engine parts

Spacecraft hulls, fuel tanks

High strength-to-weight ratio, weight reduction

2. Medical Devices

Artificial joints, bone plates, dental implants

Surgical instruments

3. Chemical Industry

Reactors, heat exchangers, piping

Resistance to strong acid and alkali corrosion

Chlor-alkali industry, seawater desalination

4. Marine Engineering

Ship components, deep-sea equipment

Resistant to seawater corrosion

Submarines, offshore platforms

5. Other Fields

Electroplating industry (anode plates)

Sports equipment (golf clubs, bicycle frames)

Jewelry (hypoallergenic)

3D printing materials





1. Chemical composition testing

2. Machenical property testing

3. Hardness testing

4. Metallographic Testing and Analysis

5. Surface Finish Inspection

6. Accepts third-party testing

7. Provide certificate of quality compliance with standard requirements
